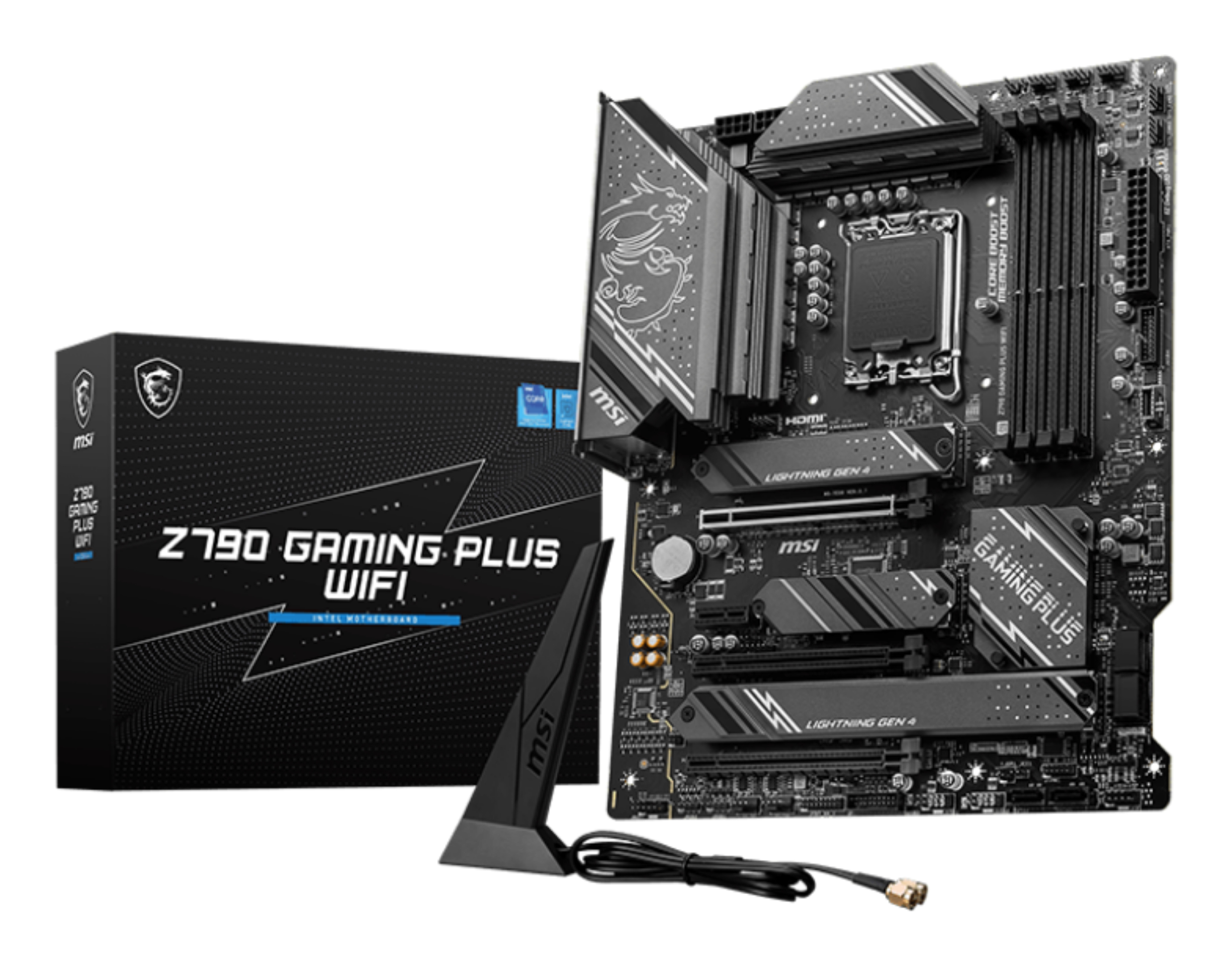

MSI Z790 GAMING PLUS WIFI motherboard Intel Z790 LGA 1700 ATX
MSI Z790 GAMING PLUS WIFI, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, LGA 1700, DDR5-SDRAM, 192 GB
Click or hover over image to enlarge
Part #: 6111747
Supported memory types
DDR5-SDRAM
Number of memory slots
4
ECC сompatibility
Non-ECC
Supported memory clock speeds
7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
Supported memory clock speed (max)
7200 MHz
Maximum internal memory
192 GB
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Comsys Pacific Price
Save NZ$84.40 off RRP
Available to Order
Ships in 1–5 business days
Four payments of NZ$121.32 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
MSI Z790 GAMING PLUS WIFI
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
Key features
- Processor manufacturer: Intel
- Processor socket: LGA 1700
- Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold
- Supported processor sockets: LGA 1700
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- ECC сompatibility: Non-ECC
- Supported memory clock speeds: 7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
- Supported memory clock speed (max): 7200 MHz
- Maximum internal memory: 192 GB
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, PCI Express
- RAID support: Yes
- RAID levels: 0, 1, 5, 10
- Parallel processing technology support: Not supported
- On-board graphics card: No
- USB 2.0 connectors: 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- Number of SATA III connectors: 6
- Front panel audio connector: Yes
- Front panel connector: Yes
- TPM connector: Yes
- RGB LED pin header: Yes
- USB 2.0 ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
- USB 3.2 Gen 2x2 Type-C ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
+ 22 more — see the Specifications tab.
Ex GST
NZ$421.99
