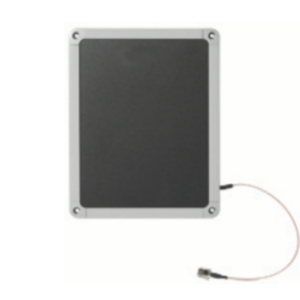

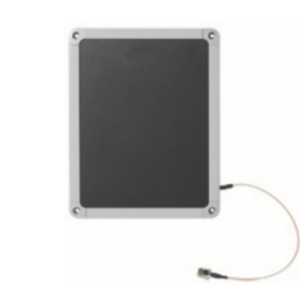

Zebra AN610 network antenna Omni-directional antenna N-type 1 dBi

Zebra AN610, 1 dBi, 0.864 - 0.868 GHz, Omni-directional antenna, N-type, Female, Circular polarization

MOTOROLA ANTENNA:SLIM RFID 10.8 X 8.4 EU

Click or hover over image to enlarge

Brand:MOTOROLA
MPN:2448219

Part #: 2448219

Power consumption (max)

6 W

Antenna type

Omni-directional antenna

Antenna connector type

N-type

Connector gender

Female

Polarization

Circular polarization

Voltage Standing Wave Ratio (VSWR)

1.4:1

Product colour

Black

Mounting

Ceiling/wall

Returns & Warranty

Comsys Pacific Price

$452.99

Save NZ$27.21 off RRP

Available to Order

Ships in 1–5 business days

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1
Add To Compare
We acceptVISAAMEXPayPayafterpayKlarna.
Afterpay

Four payments of NZ$130.24 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

MOTOROLA ANTENNA:SLIM RFID 10.8 X 8.4 EU

The AN610 is space-saving and stylish. The outer housing is designed to be sleek and discreet enough to be at home in any business setting but rugged enough for indoor industrial environments.

Easy to Mount
The AN610 features a simple, integrated mounting system. It stands just under one-half inch (12mm) from horizontal or vertical mounting surfaces.

Stylish Space Saver
The outer shell is sleek and discreet for any business setting but rugged enough for indoor industrial areas.

Suited For All Areas
The AN610 antenna is suited for use in wall mount, doorways, under counter, above counter as an RFID pad, on shelves, POS or end-cap displays like jewelry counter applications.

Key features

  • Frequency band: 0.864 - 0.868 GHz
  • Antenna gain level (max): 1 dBi
  • Antenna type: Omni-directional antenna
  • Antenna connector type: N-type
  • Connector gender: Female
  • Polarization: Circular polarization
  • Voltage Standing Wave Ratio (VSWR): 1.4:1
  • Product colour: Black
  • Mounting: Ceiling/wall
  • Purpose: Indoor & outdoor
  • Front to back ratio: 18 dB
  • Isolation: 38 dB
  • Power consumption (max): 6 W
  • Operating temperature (T-T): -30 - 65 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Width: 214 mm
  • Depth: 12 mm
  • Height: 275 mm
  • Weight: 600 g
  • Quantity per pack: 1 pc(s)
  • Harmonized System (HS) code: 85177100
