Lenovo 4Y37A09728 RAID controller PCI Express x8 4.0 12 Gbit/s

Lenovo 4Y37A09728, SAS, Serial ATA, PCI Express x8, 0, 1, 5, 6, 10, 50, 60, JBOD, 12 Gbit/s, Broadcom SAS3908

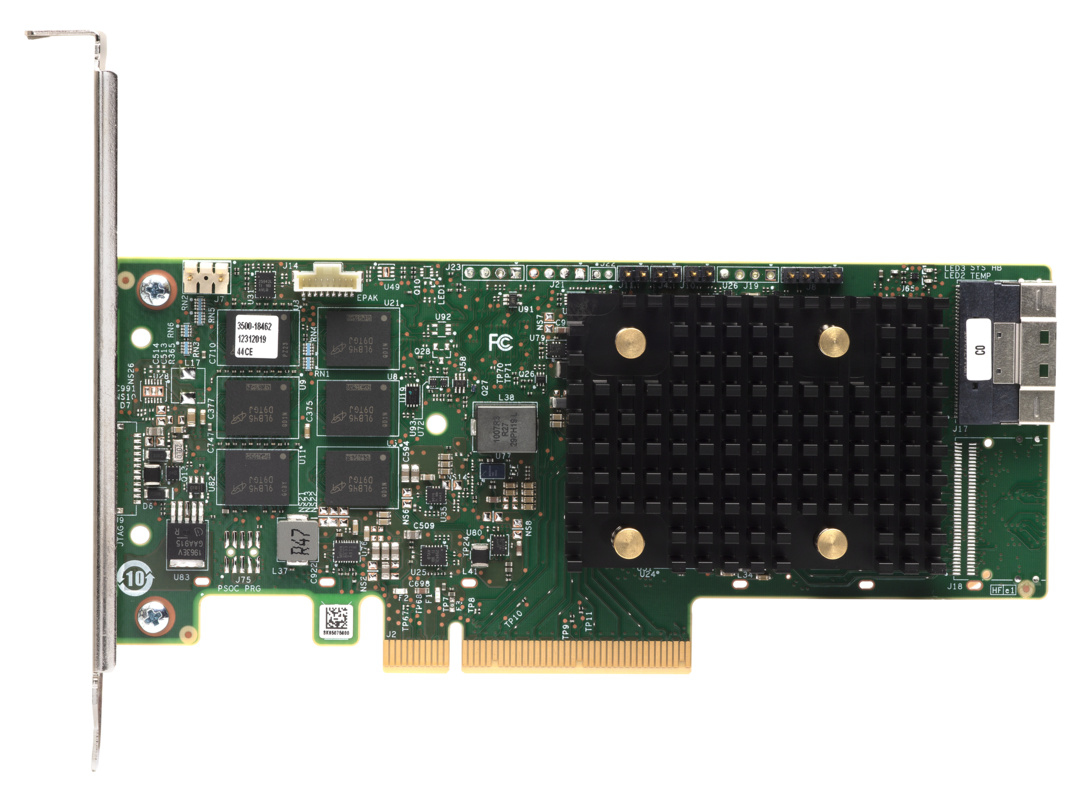

LENOVO THINKSYSTEM RAID 940-8I 4GB FLASH PCIE GEN4 12GB ADAPTER (GEN4)

Click or hover over image to enlarge

Brand:LENOVO
MPN:4Y37A09728

Part #: 4Y37A09728

RAID levels

0, 1, 5, 6, 10, 50, 60, JBOD

Data transfer rate

12 Gbit/s

Chipset

Broadcom SAS3908

JBOD function

Yes

S.M.A.R.T. support

Yes

Harmonized System (HS) code

84733080

Supported storage drive interfaces

SAS, Serial ATA

Host interface

PCI Express x8

Returns & Warranty

Comsys Pacific Price

$3,407.99
Manager's Special

Save NZ$201.00 off RRP

Available to Order

Ships in 1–5 business days

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1
Add To Compare
We acceptVISAAMEXPayPayafterpayKlarna.
Afterpay

Four payments of NZ$979.80 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

LENOVO THINKSYSTEM RAID 940-8I 4GB FLASH PCIE GEN4 12GB ADAPTER (GEN4)

The RAID 940 Series adapters all have a PCIe 4.0 host interface which doubles the bandwidth between the server and the adapter, compared to the previous generation RAID 930 adapters. This improves overall performance of the storage subsystem by supporting up to 3 million IOPS (JBOD mode) and up to 3 million IOPS in RAID (random reads).

RAID on Chip-based controllers such as the RAID 940 adapters have a dedicated processor that offloads all RAID functions from the server's CPU. With hardware acceleration for RAID 5 and 6 operations plus up to 8 GB dedicated memory for caching, the 940-8i, 16i and 32i offer the ultimate performance for ThinkSystem servers.

Key features

  • Supported storage drive interfaces: SAS, Serial ATA
  • Host interface: PCI Express x8
  • PCI Express slots version: 4.0
  • Internal SAS ports: 8
  • Internal SATA ports quantity: 8
  • RAID levels: 0, 1, 5, 6, 10, 50, 60, JBOD
  • Data transfer rate: 12 Gbit/s
  • Chipset: Broadcom SAS3908
  • JBOD function: Yes
  • S.M.A.R.T. support: Yes
  • Harmonized System (HS) code: 84733080
