ATEN VE800A-AT-U AV extender AV transmitter & receiver Black

ATEN VE800A-AT-U, 1920 x 1080 pixels, AV transmitter & receiver, 3 m, Wired, Black, HDCP

ATEN HDMI OVER CAT 5 EXTENDER

Click or hover over image to enlarge

Brand:ATEN
MPN:VE800A-AT-U

Part #: VE800A-AT-U

Power consumption (transmitter) (max)

0.9 W

Power consumption (receiver) (max)

0.61 W

Type

AV transmitter & receiver

Maximum resolution

1920 x 1080 pixels

Cable types supported

Cat5, Cat6, Cat6a

Maximum transfer distance

3 m

LED indicators

Yes

Supported video modes

1080p

Returns & Warranty

Comsys Pacific Price

$108.99

Save NZ$27.86 off RRP

In Stock

10 units available

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1
Add To Compare
We acceptVISAAMEXPayPayafterpayKlarna.
Afterpay

Four payments of NZ$31.34 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ATEN HDMI OVER CAT 5 EXTENDER

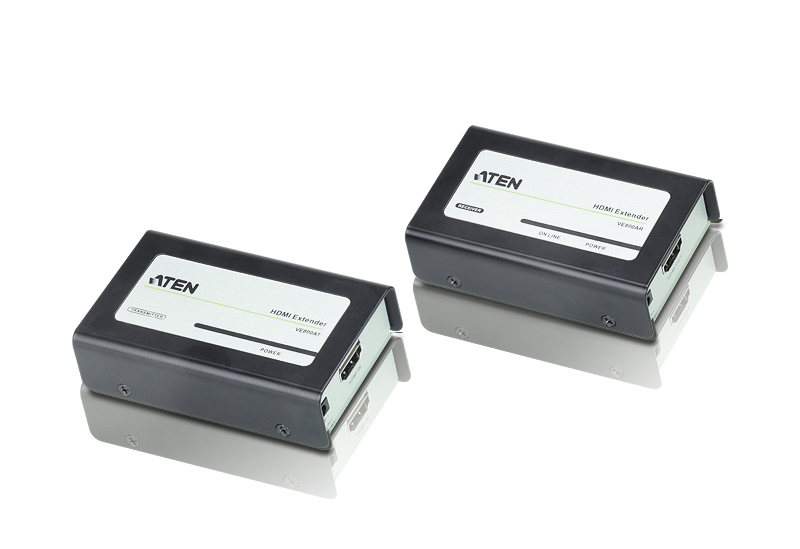

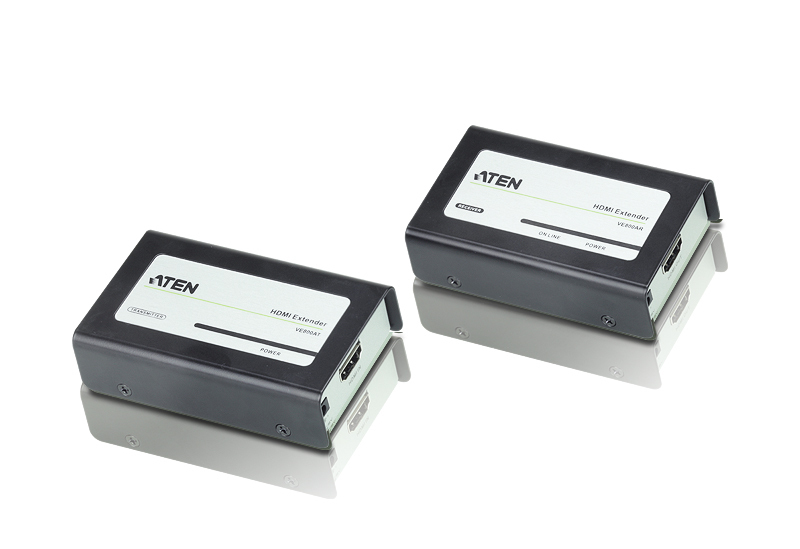

The VE800A HDMI Extender extends your HDMI display up to 60 m away from your HDMI source using one Cat 5e cable. ATEN's VE800A incorporates new technology that allows the A/V signals to be transmitted over a single Cat 5e cable. DDC port is provided for the ability to use the display's EDID by simply connecting another Cat 5e cable. The VE800A supports HDMI features such as 3D and Deep Color to give you the picture perfect viewing experience you desire.
1x VE800AT HDMI Extender
1x VE800AR HDMI Extender
2x 0AD6-1705-10EG Power Adapters
1x Mounting Kit
1x User Instructions

Key features

  • Type: AV transmitter & receiver
  • Maximum resolution: 1920 x 1080 pixels
  • Cable types supported: Cat5, Cat6, Cat6a
  • Maximum transfer distance: 3 m
  • LED indicators: Yes
  • Supported video modes: 1080p
  • Bandwidth: 6.75 Gbit/s
  • Bandwidth: 225 MHz
  • HDCP: Yes
  • Material: Metal
  • Impedance: 100 Ω
  • Product colour: Black
  • Connectivity technology: Wired
  • Ethernet LAN: Yes
  • RJ-45 input ports: 2
  • RJ-45 output ports: 2
  • HDMI in: 1
  • Number of HDMI outputs: 1
  • DC-in jack: Yes
  • Power consumption (transmitter) (max): 0.9 W
  • Power consumption (receiver) (max): 0.61 W
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Receiver dimensions (WxDxH): 55 x 90 x 22 mm
  • Receiver weight: 160 g
  • Transmitter dimensions (WxDxH): 55 x 90 x 22 mm
  • Transmitter weight: 160 g
  • Quantity per pack: 2 pc(s)
  • AC adapter included: Yes
