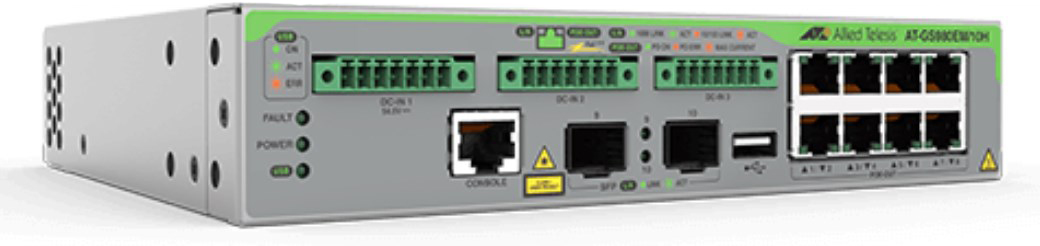

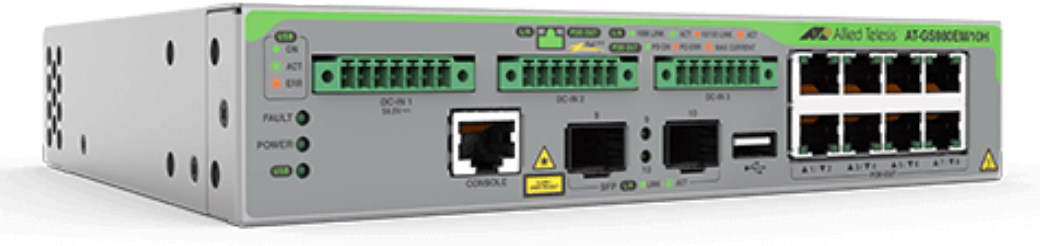

Allied Telesis AT-GS980EM/10H, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
Click or hover over image to enlarge
Part #: 5269621
Power supply included
No
AC input voltage
100 - 240 V
Rack mounting
Yes
Stackable
No
Form factor
1U
Product colour
Grey
LED indicators
Yes
Electromagnetic compatibility
EN55032 A, FCC A, VCCI A, ICES-003 A
Comsys Pacific Price
Save NZ$314.00 off RRP
Available to Order
Ships in 1–5 business days
Four payments of NZ$675.91 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
ALLIED TELESIS 8 PORT 1G POE++ 2 PORT SFP 3 PORT DC-INP
The Allied Telesis GS980EM Series of Gigabit Layer 3 Lite PoE++/PoE pass-through switches offer an impressive set of features in a compact design. Ideal for deployment at the network edge, the GS980EM Series feature flexible Power over Ethernet capabilities to support IoT device connectivity in today’s converged business environments.
Overview
Allied Telesis GS980EM Series are secure and reliable, offering 8 x Gigabit PoE enabled ports and 2 x SFP uplinks, and providing a high value solution for flexible PoE at the network edge.
The GS980EM/10H can provide up to 90 Watts (PoE++) on all ports. This enables powering high power devices such as high resolution PTZ cameras with heater/blowers for outdoor applications, enhanced infrared lighting and lighting controllers, and more. The GS980EM/10H requires a PWR300 external power supply to operate and provide PoE power. Up to three PWR300 PSUs can be used to increase the available PoE power.
The GS980EM/11PT can supply up to 30 Watts (PoE+) to connected devices. It can be powered by an AC power adapter, or by PoE(1). When deployed together, the GS980EM/11PT can be powered by the GS980EM/10H, while PoE pass-through enables power from the GS980EM/10H to pass through the GS980EM/11PT to power connected end points.
Key features
- Switch type: Managed
- Switch layer: L3
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Configuring Location Settings (CLI): Yes
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP module slots quantity: 2
- Networking standards: IEEE 802.1Q, IEEE 802.1v, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- 10G support: No
- Port mirroring: Yes
- Full duplex: Yes
- Policy-based routing: Yes
- Flow control support: Yes
- VLAN support: Yes
- Virtual LAN features: Private VLAN
- Number of VLANs: 4094
- Switching capacity: 24 Gbit/s
- Forwarding rate: 14.9 Mpps
- MAC address table: 16000 entries
- Latency (10-100 Mbps): 5.4 µs
- Latency (1 Gbps): 3 µs
- Number of queues: 8
- Jumbo frames support: Yes
- Jumbo frames: 10000
- Packet buffer memory: 1.5 MB
- DHCP features: DHCP snooping, DHCPv6 client, DHCPv6 relay
- Access Control List (ACL): Yes
- Security algorithms: 3DES, 128-bit AES, 192-bit AES, 256-bit AES, AES, DES, MD5, SHA-1, SHA-2, SHA-256
- MAC address filtering: Yes
+ 38 more — see the Specifications tab.
Ex GST
NZ$2,350.99
