Allied Telesis X530L-28GPX Managed L3 Gigabit Ethernet (10/100/1000)…

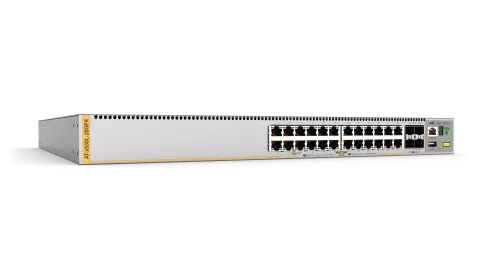

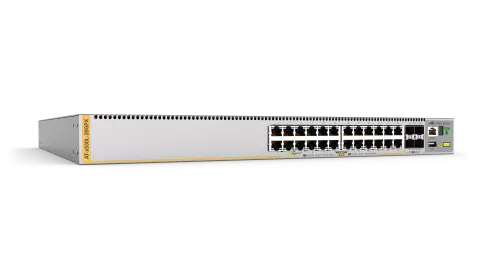

Allied Telesis X530L-28GPX, Managed, L3, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack mounting

ALLIED TELESIS 24PORT POE+ STACKABLE L3 4XSFP

Click or hover over image to enlarge

Brand:ALLIED TELESIS
MPN:5685198

Part #: 5685198

Power source

AC

AC input voltage

90 - 264 V

AC input frequency

50 - 60 Hz

Power consumption (max)

890 W

Rack mounting

Yes

Stackable

Yes

LED indicators

Yes

Networking standards

IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Returns & Warranty

Comsys Pacific Price

$6,887.99
Clearance

Save NZ$922.00 off RRP

Deal ends in
01Days
16Hrs
06Min
18Sec

Available to Order

Ships in 1–5 business days

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1
Add To Compare
We acceptVISAAMEXPayPayafterpayKlarna.
Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ALLIED TELESIS 24PORT POE+ STACKABLE L3 4XSFP

Stackable Intelligent Layer 3 Switches
The Allied Telesis x530L Series stackable Layer 3 switches feature high capacity, resiliency and easy management. With both Multi-Gigabit and high port density models, plus Power over Ethernet, they are the ideal choice for network access applications.

Key features

  • Switch type: Managed
  • Switch layer: L3
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Traffic classification: Yes
  • Configuring Location Settings (CLI): Yes
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 24
  • Installed SFP+ modules quantity: 4
  • Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
  • 10G support: Yes
  • Port mirroring: Yes
  • Full duplex: Yes
  • Flow control support: Yes
  • VLAN support: Yes
  • Number of VLANs: 4094
  • Switching capacity: 128 Gbit/s
  • Forwarding rate: 95.2 Mpps
  • MAC address table: 16000 entries
  • Latency (10-100 Mbps): 6.06 µs
  • Latency (1 Gbps): 3.98 µs
  • Latency (10 Gbps): 1.63 µs
  • Packet buffer memory: 3 MB
  • Access Control List (ACL): Yes
  • Password protection: Yes
  • Multicast support: Yes
  • Routing protocols: OSPF
  • Rack mounting: Yes
  • Stackable: Yes

+ 25 more — see the Specifications tab.
